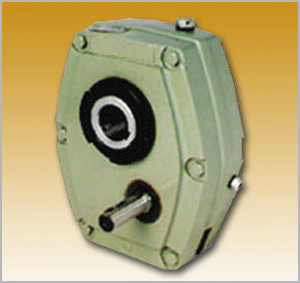

"Shrinathji Engineers & Fabricators" Shaft Mounted Speed Reducer are compact, totally enclosed and are designed for direct mounting on the drive shaft of the equipment to be driven. The direct mounting principle assures positive and permanent alignment of the Speed Reduce and the driven machine and permits convinient location of the motor, minimizing space requirements and layout problems. It also eliminates the foundations.

"Shrinathji Engineers & Fabricators" Shaft Mounted Speed Reducers offers unlimited installation flexibility, it is to be mounted with a tie-rod. "ORKAY" Shaft Mounted Speed Reducers are designed to meet any position requirements and satisfy a wide range of output speeds and horse power requirements.

"Shrinathji Engineers & Fabricators" Speed Reducers consists of hardened precision - machined alloy steel Helical Gears mounted on micro finish Shafts supported on long life precision bearings with the capacity to handle maximum loading. The two - peice close Grain C.I. housing provides sturdy support and insures permanent accurate alignment of all components.

"Shrinathji Engineers & Fabricators" Shaft Mounted Speed Reducers is metric in design and AGMA Standards have been adopted wherever required "Shrinathji Engineers & Fabricators" Speed Reducers is manufactured in 6 different sizes and have Gear Ratios of 5:1, 13:1 and 20:1.

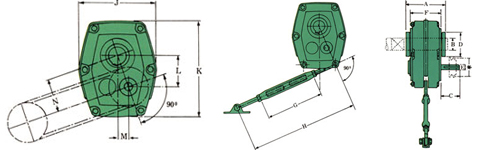

Min
Max
OTA
116
30
53
80
14j6
5 x 3 x 45
94
200
600
750
160
208
66
24
70
OTB
134
30
63
90
19j6
6 x 3.5 x 50
104
200
600
750
186
226
75
25
79
OTC
142
40
73
100
22j6
6 x 3.5 x 66
108
200
600
750
218
270
90
31
95
OTD
152
50
80
115
25j6
8 x 4 x 70
118
216
700
850
258
328
110
37
116
OTE
170
55
85
130
28j6
8 x 4 x 75
130
216
700
850
278
377
125
43
133
OTF
188
65
90
145
32k6
10 x 5 x 80
149
216
750
900
318
414
141
50
150
